Cold shrink Breakout Boots Introduction:
-
Cold shrink breakout enables fast universal installation, adapting to various cable sizes without flame or heating.
-
Cold shrink breakout requires no additional techniques or processes, making operation simple and efficient.
-
Cold shrink breakout offers excellent ozone and UV resistance, suitable for long-term outdoor use.
-
Cold shrink breakout provides excellent solvent resistance for complex chemical environments.
-
Cold shrink breakout ensures excellent thermal stability, remaining reliable under temperature fluctuations.
-
Cold shrink breakout is the ideal choice for medium & low voltage substation hubs and transmission tower piles.
Cold shrink cable breakout boots specification and model
| Size |
Core |
Base dimension (mm) |
branch dimension (mm) |
Cable range(mm2) |
| ID AS supplied |
ID After recovery |
ID AS supplied |
ID After recovery |
| 85/35 |
3cores For 15kV |
85 |
34 |
32 |
13 |
25-50 |
| 95/50 |
95 |
49 |
38 |
16 |
70-120 |
| 100/60 |
105 |
56 |
45 |
20 |
150-240 |
| 110/65 |
114 |
63 |
52 |
24 |
300-400 |
| 120/75 |
3 cores for 36kv |
122 |
71 |
55 |
25 |
35-70 |
| 135/85 |
139 |
83 |
60 |
30 |
95-185 |
| 150/90 |
155 |
90 |
70 |
37 |
240-400 |
| 60/20 |
4 cores for 1kV |
60 |
18 |
20 |
7 |
25-50 |
| 70/25 |
70 |
23 |
26 |
9 |
70-120 |
| 90/35 |
90 |
32 |
33 |
13 |
150-240 |
| 100/40 |
100 |
38 |
40 |
17 |
300-400 |
Cold Shrink Breakout Boots Features:
-
Fast installation, fitting various cable sizes
-
No heating or open flame required
-
No auxiliary tools or complex processes needed
-
Excellent resistance to ozone and UV aging
-
Good resistance to chemical solvents
-
Excellent thermal stability for temperature variations

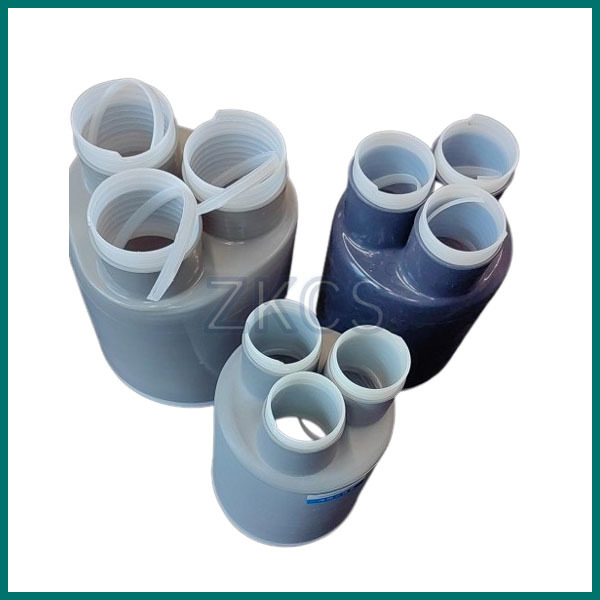

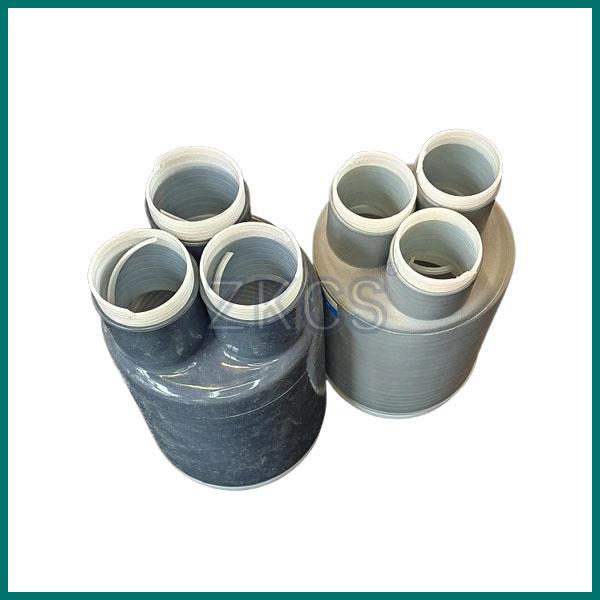

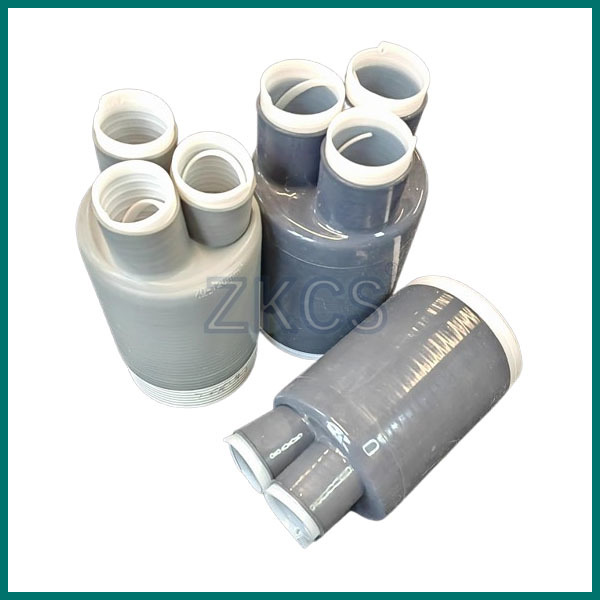

Cold Shrink Breakout Boots Cable Accessories Reference Picture:
FAQ
1. What is a cold shrink breakout?
A cold shrink breakout is a cable branch sealing and protection product that shrinks elastically without heat. It offers fast installation and fits various cable sizes.
2. What is the difference between cold shrink breakout and traditional heat shrink breakout?
Traditional heat shrink breakout requires heating to shrink, while cold shrink breakout requires no flame or heat. It is installed simply by pulling a rip cord, making it safer and more convenient, especially for areas where open flame is prohibited.
3. Does cold shrink breakout require special tools or techniques for installation?
No. Cold shrink breakout requires no additional techniques or processes. Simply place it over the cable branch and pull the built-in rip cord – it will shrink automatically.
4. What environments is cold shrink breakout suitable for?
Cold shrink breakout offers excellent ozone and UV resistance, making it suitable for long-term outdoor use. It also provides excellent solvent resistance and thermal stability, adapting to complex chemical environments and temperature fluctuations.
